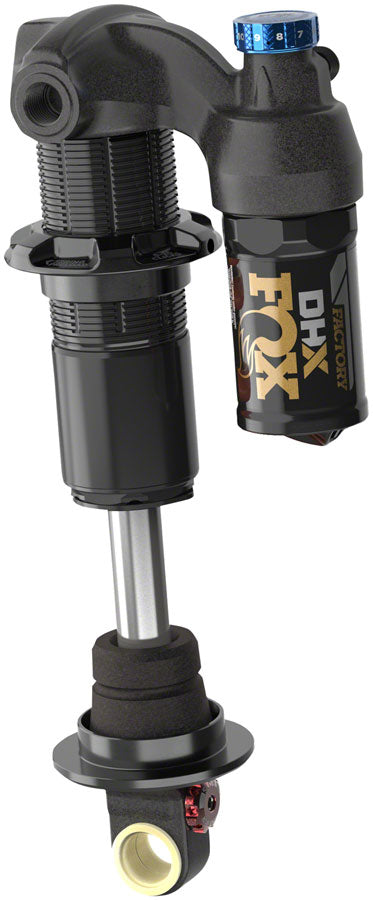

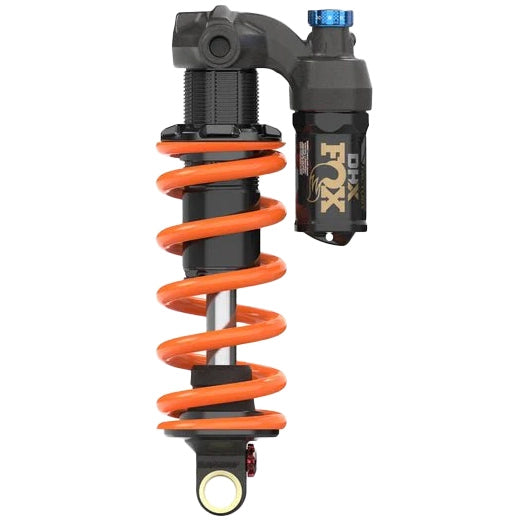

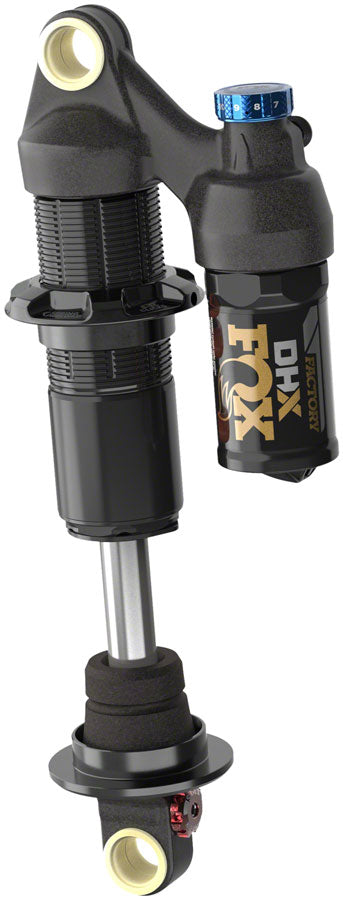

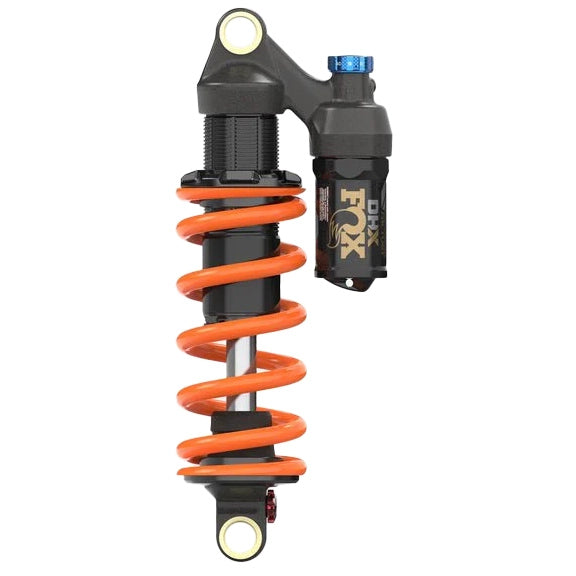

Fox DHX Factory Rear Shock

Answering the prayers of riders seeking the ultimate in plush suspension the DHX brings coil-sprung magic-carpet trail smoothing performance in a wide range of configurations to the trails and beyond.

New chassis and damper

High-flow main piston Numbered Tool-free 12 position single-turn LSC (Low Speed Compression) adjuster

Independent firm mode circuit – 2 position adjuster Optimized reservoir lengths per shock size

Hydraulic top out feature Reduced damper noise MCU bottom out bumper

Single-turn rebound adjuster with a variety of access modes (Tool-free 3mm hex (direct access) 2mm hex or similar (side access)

Spring preload collar with detents and max / min number of clicks and direction arrow

Coil spring sold separately

Stroke (mm)	55, 60
Lockout Switch	Shock Mounted Switch
Metric	Yes
Eyelet Diameter (mm)	12.7, Trunnion, 12.7
External Adjustments	Rebound Damping
Positive Spring	Coil
Eye to eye length (mm)	205, 210, 230
keyword search	FOX MY25
Model	DHX Factory, DHX Factory Trunnion
Stroke	62.5mm, 65mm
Eye	Eye-205mm, Eye-230mm
