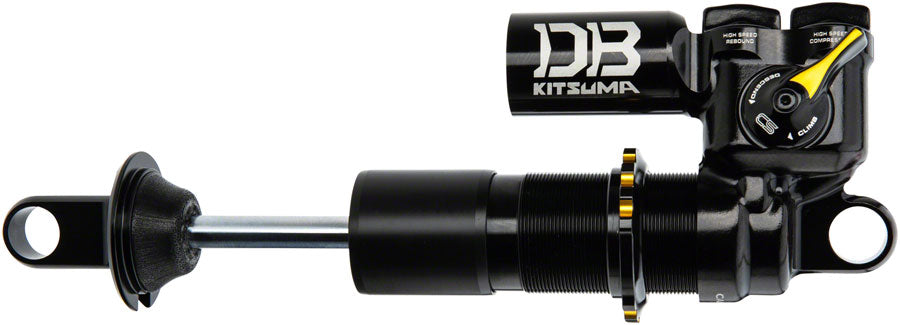

CaneCreek DB Kitsuma Coil Rear Shock

The DB Kitsuma shock was designed to be very intuitive and easy to use for the rider on and off the trail. It boasts a wider range of damping adjustment on the compression circuit and increased range of rebound control over any other major shock on the market today.

Three Position Climb Switch provides three distinct modes drastically affecting the shock’s feel and character. The new three position climb switch retains the “Descend” and patented “CS” mode while adding a new “Firm” mode

Tool-Free adjustments are ergonomically designed to be easily accessible and adjustable trail-side - giving riders the power of a pro-tune at their fingertips

The rebound range has been shifted downward for more rebound damping to accommodate the larger spring rates needed for more modern bikes

Coil Spring sold separate

Stroke (mm)	55, 57.5, 60, 65
Metric	Yes
Lockout Switch	Climb Switch
Weight	417
Eyelet Diameter (mm)	15
External Adjustments	Coil Preload
Positive Spring	Coil
Eye to eye length (mm)	205, 210, 230
