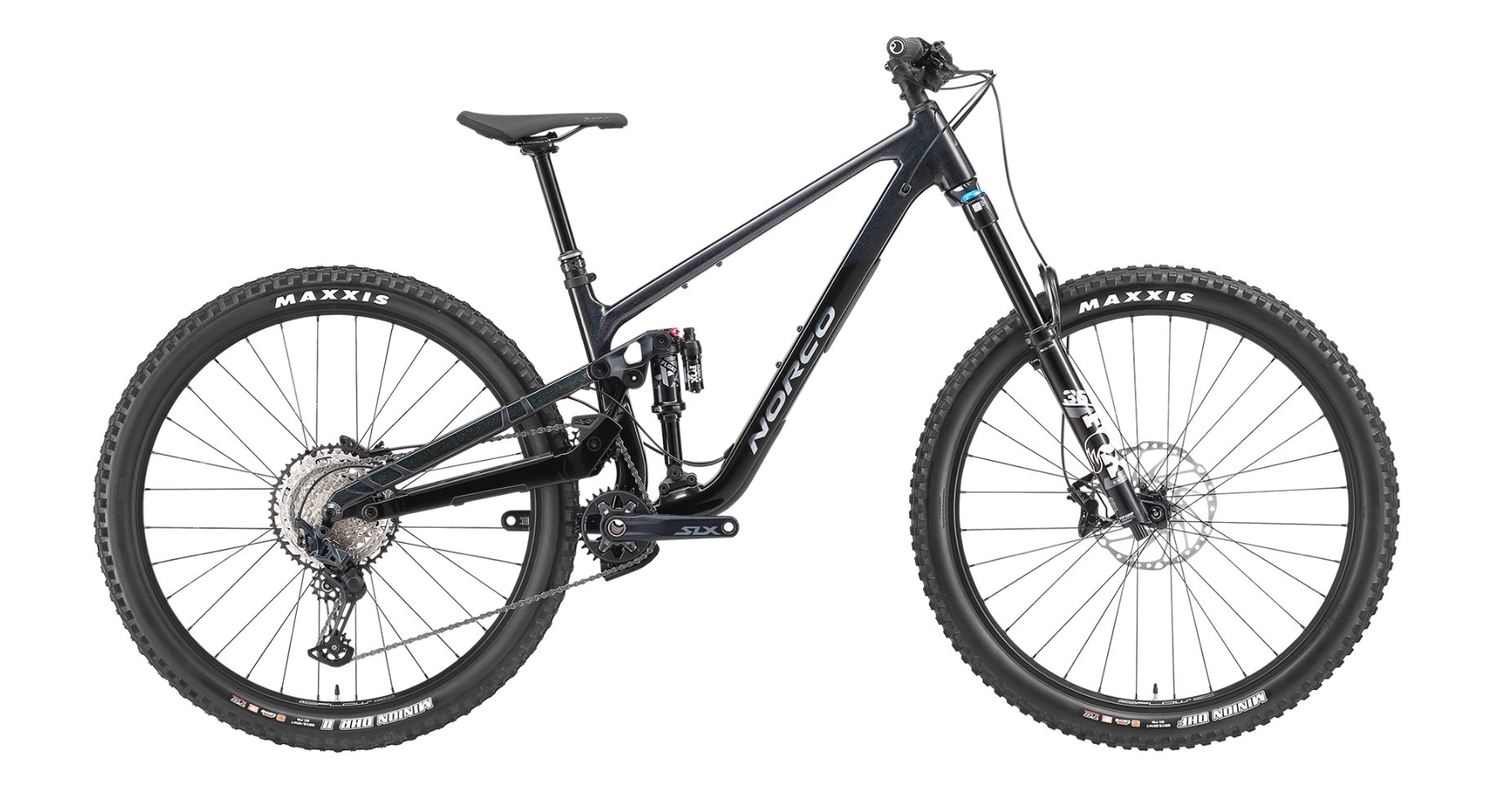

Sight A2 29/27.5 Black v5

SPECIFICATIONS

FEATURES

· Aluminum hydroformed All-Mountain frame

with Enduro bearings, 150mm travel

· Ride Aligned, with Norco design kine-

matics, High Pivot Horst Link.

· 29" and 29"/27.5" options with no-com-

promise geometry and kinematics

· RockShox Lyrik Ultimate and Super Deluxe Ul-

timate coil shock with Sprindex spring.

· SRAM GX Eagle AXS T-TypeTransmission

and Code Stealth 4 pistion brakes.

SILVER/GREEN

FRAME Sight Aluminum, High Pivot Horst Sus-

pension, 150mm Travel, UDH, Hangerless

Interface Compatible, Ride Aligned™

FORK RockShox Lyrik Ultimate, Charger 3,

160mm, 44mm offset, Fender Included

REAR SHOCK RockShox Super Deluxe Ultimate Coil,

205x60mm

HEADSET FSA #57 E Sealed Bearing

GRIPS WTB Wavelength Lock-On

HANDLE BAR 6061 Alloy, 800mm 25mm Rise

STEM CNC Alloy 40mm Length, 35mm Clamp

SEAT POST TranzX YS108 Dropper, 34.9mm, 150mm (1),

170mm (2), 200 (3, 4), 230mm (5)

SADDLE SDG Bel Air V3

FRONT BRAKE SRAM Code Stealth Bronze, 4-Piston, Sin-

tered Pads

FRONT BRAKE

ROTOR

SRAM Centerline 200mm

REAR BRAKE SRAM Code Stealth Bronze, 4-Piston, Sin-

tered Pads

REAR BRAKE

ROTOR

SRAM Centerline 180mm

SHIFTER REAR SRAM Pod Ultimate Controller

REAR DERAILLEUR SRAM GX Eagle AXS T-Type

CASSETTE SRAM CS 1275 Eagle T-Type 10-52T

CHAIN SRAM GX Eagle T-Type

CRANKSET SRAM GX Eagle T-Type, 30T (29"), 32T

(29'/27.5"), 170mm

BOTTOM BRACKET SRAM DUB BSA Threaded

CHAIN GUIDE Norco Idler Guide and Lower Guide

FRONT HUB Race Face Vault, 15x110mm Boost, 6-Bolt

REAR HUB Race Face Vault 12x148mm Boost, XD,

6-Bolt

SPOKES/NIPPLES DT Competition Butted Black Stainless

RIMS Stan's Flow S2, Black 32H, 29"/29" or

29"/27.5"

FRONT TIRE Maxxis Minion DHF 2.5', 3C, MaxxTerra /

EXO+ / TR, Folding

REAR TIRE Maxxis Minion DHR II 2.4" WT, 3C, Maxx-

Terra / EXO+ / TR, Folding

SEALANT Stan's Sealant - 200ml

VALVES Universal 35mm Presta Valve S
